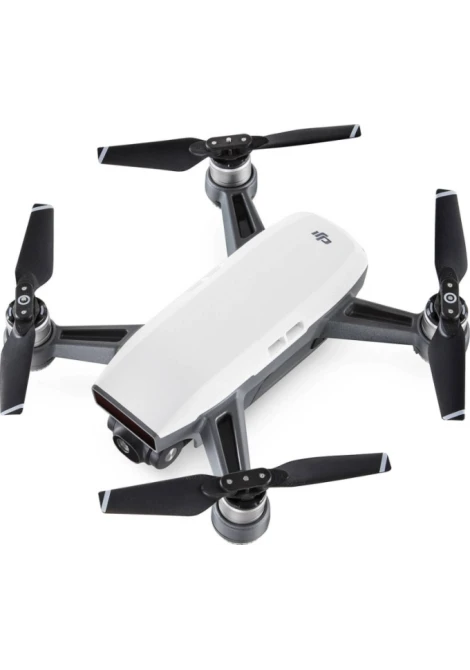

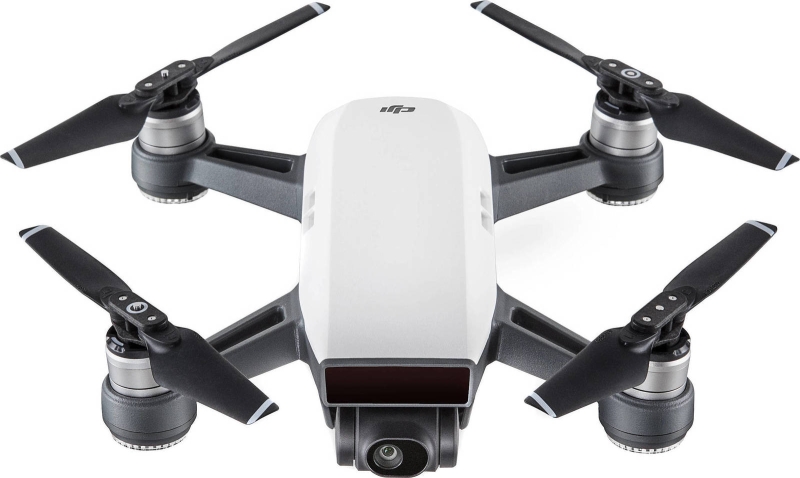

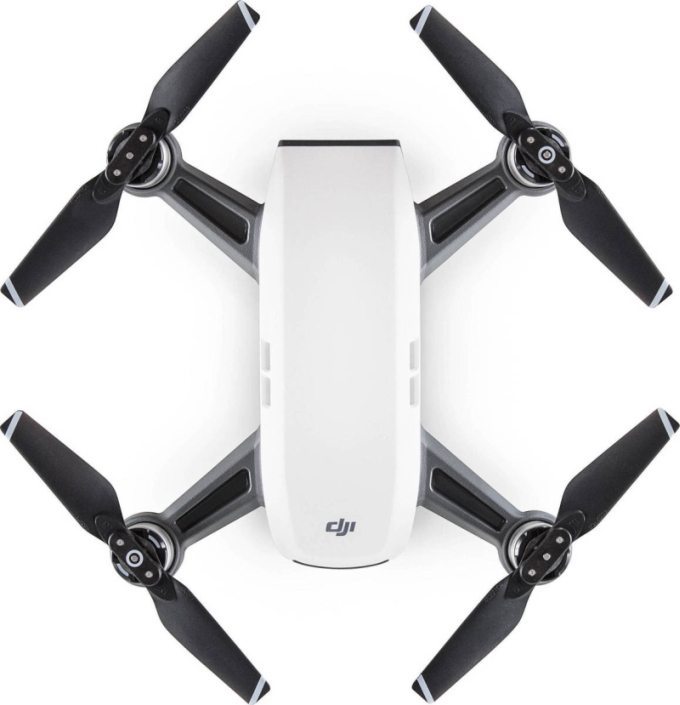

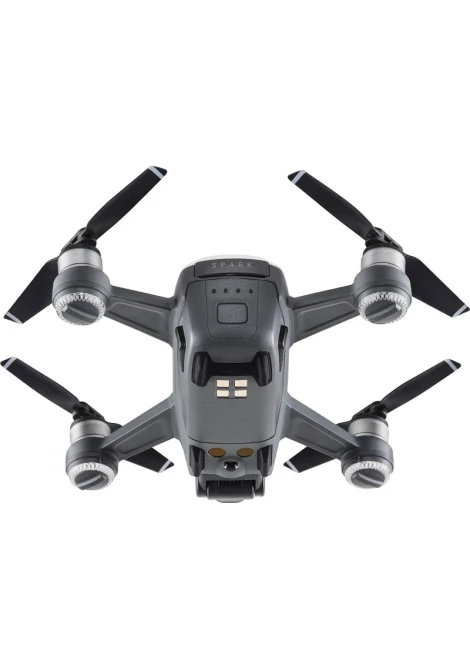

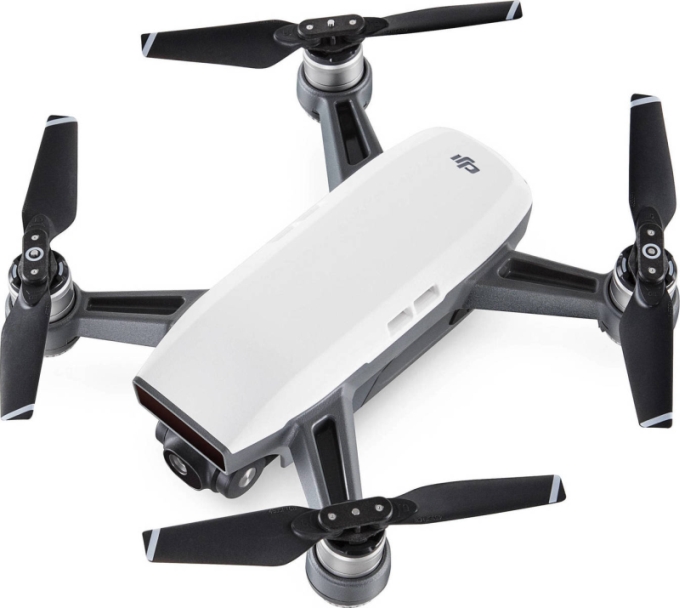

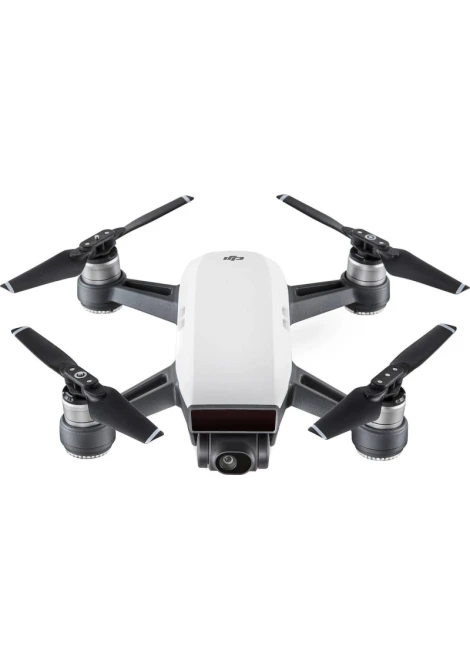

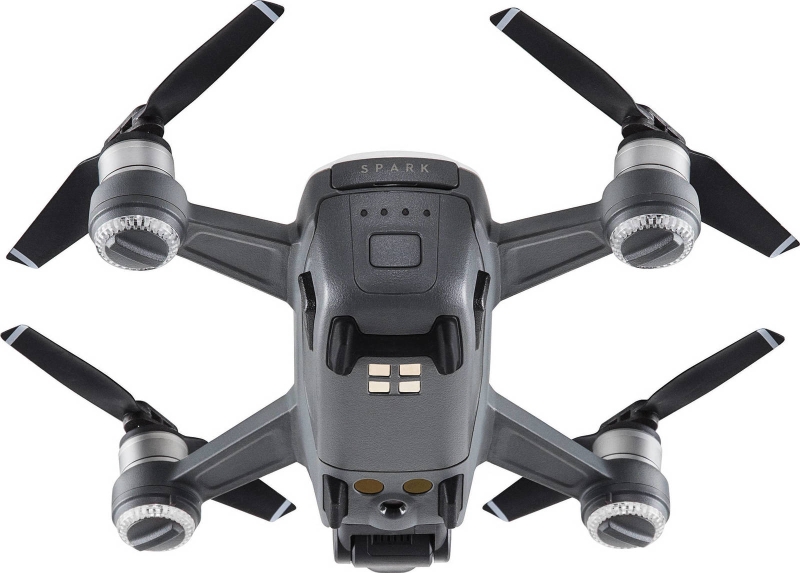

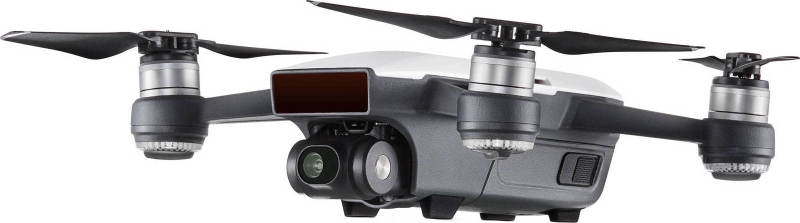

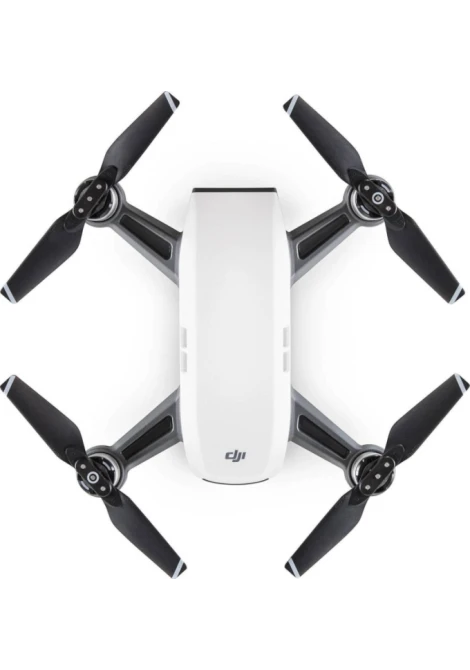

Dji Spark Alpine White (EU) Drone

AIRCRAFT

• Takeoff Weight 300 g
• Dimensions 143×143×55 mm
• Diagonal Distance (propellers excluded) 170 mm
• Max Ascent Speed 9.8 ft/s (3 m/s) in Sport Mode without wind
• Max Descent Speed 9.8 ft/s (3 m/s) in Auto Landing Mode
• Max Speed 31 mph (50 kph) in Sport Mode without wind
• Max Service Ceiling Above Sea Level 13,123 feet (4,000 m)
• Max Flight Time 16 minutes (no wind at a consistent 12.4 mph (20 kph))
• Max Hovering Time 15 minutes (no wind)
• Operating Temperature Range 32° to 104° F (0° to 40° C)
• Satellite Positioning Systems GPS/GLONASS
• Hover Accuracy Range
  • Vertical: +/- 0.1 m (when Vision Positioning is active) or +/-0.5 m
  • Horizontal: +/- 0.3 m (when Vision Positioning is active) or +/-1.5 m
• Transmitter Power (EIRP)
  • 2.4 GHz
  • FCC: 25 dBm; CE: 18 dBm; SRRC: 18 dBm
  • 5.8 GHz
  • FCC: 27 dBm; CE: 14 dBm; SRRC: 27 dBm
• Operating Frequency 2.400 - 2.483 GHz; 5.725 - 5.825 GHz

3D SENSING SYSTEM

• Obstacle Sensing Range 1-16 ft (0.2 - 5 m)
• Operating Environment Detects diffuse reflective surfaces (>20%) larger than 20x20 cm (walls, trees, people, etc.)

CAMERA

• Sensor
  • 1/2.3" CMOS
  • Effective pixels: 12 MP
• Lens FOV 81.9° 25 mm (35 mm format equivalent) f/2.6
• (shooting range: 2 m to ∞)
• ISO Range Video: 100-3200
• Photo: 100-1600
• Electronic Shutter Speed 2-1/8000 s
• Image Size
  • 3968×2976 when shooting without tracking an object
  • 1440×1080 when tracking an object in ActiveTrack or Gesture mode
  • 1440×1080 with ShallowFocus
  • 2300×1280 with Pano (horizontal)
  • 960×1280 with Pano (vertical)
• Still Photography Modes
  • Single Shot
  • Burst Shooting: 3 frames
  • Auto Exposure Bracketing (AEB): 3 bracketed frames at 0.7 EV bias
  • Interval: 2/3/5/7/10/15/20/30/60 s
• Video Resolution FHD: 1920×1080 30p
• Max Video Bitrate 24 Mbps
• Supported File Systems FAT32
• Photo Format JPEG
• Video Format MP4 (MPEG-4 AVC/H.264)

REMOTE CONTROLLER

• Operating Frequency 2.412-2.462 GHz; 5.745-5.825 GHz
• Max Transmission Distance
  • 2.412 - 2.462 GHz (unobstructed, free of interference)
  • FCC: 1.2 mi (2 km); CE: 0.3 mi (500 m); SRRC: 0.3 mi (500 m)
  • 5.745 - 5.825 GHz (unobstructed, free of interference)
  • FCC: 1.2 mi (2 km); CE: 0.18 mi (300 m); SRRC: 0.7 mi (1.2 km)
• Operating Temperature Range 32° to 104° F (0° to 40° C)
• Battery 2970 mAh
• Transmitter Power (EIRP)
  • 2.4 GHz
  • FCC: ≤26 dBm; CE: ≤18 dBm; SRCC: ≤18 dBm
  • 5.8 GHz
  • FCC: ≤28 dBm; CE: ≤14 dBm; SRCC: ≤26 dBm
• Operating Current/Voltage 950 mAh @3.7 V
• Supported Mobile Device Size
  • Thickness range: 6.5-8.5 mm
  • Max length: 160 mm

INTELLIGENT FLIGHT BATTERY

• Capacity 1480 mAh
• Voltage 11.4 V
• Max Charging Voltage 13.05 V
• Battery Type LiPo 3S
• Energy 16.87 Wh
• Net Weight Approx. 0.2 lbs (95 g)
• Charging Temperature Range 41° to 104° F (5° to 40° C)

GIMBAL

• Controllable Range Pitch: -85° to 0°
• Stabilization 2-axis mechanical (pitch, roll)

VISION SYSTEM

• Velocity Range ≤22.4 mph (36 kph) at 6.6 ft (2 m) above ground
• Altitude Range 0-26 ft (0 - 8 m)
• Operating Range 0-98 ft (0 - 30 m)
• Operating Environment Detects clearly patterned surfaces with adequate lighting (lux>15) and diffuse reflectivity (>20%)

WI-FI

• Operating Frequency 2.4 GHz/5.8 GHz
• Max Transmission Distance 100 m(Distance), 50 m(Height) (Unobstructed, free of interference)

CHARGER

• Input 100-240 V; 50/60 Hz; 0.5 A
• Output 5 V/3 A; 9 V/2 A; 12 V/1.5 A

RECOMMENDED MICRO SD CARDS

• Model
  • Sandisk 16/32 GB UHS-1 Micro SDHC
  • Kingston 16/32 GB UHS-1 Micro SDHC
  • Samsung 16/32 GB UHS-I Micro SDHC
  • Sandisk 64 GB UHS-1 Micro SDXC
  • Kingston 64 GB UHS-1 Micro SDXC
  • Samsung 64 GB UHS-I Micro SDXC
